槽式橋架

    CHANNEL TYPE CABLE BRIDGE

      槽式橋架是一種全封閉型電纜橋架,用于鋪設計算機電纜,通訊電纜,熱電偶電纜及其它高靈敏系統的控制電纜等,它對于控制電纜的屏蔽防干擾和重腐蝕環境中的電纜防護有較好的效果，

      Channel Type Bridge is a kind of flly-chosed bridge,mainly used in laying of computercable,communication cable thermocouplecable and other control cables for high sensitivesystem. It has good advantage in shielding interference of control cables andprotecting cables under heavy corrosion.

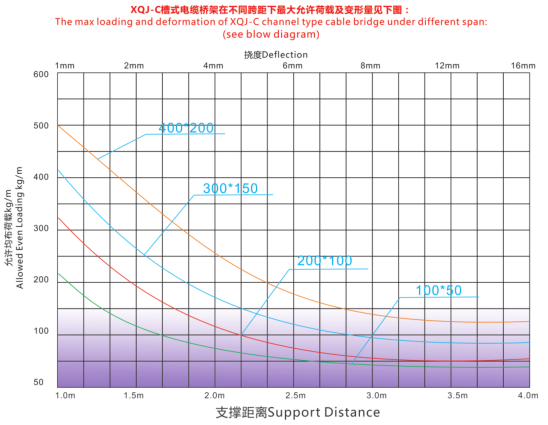

      XQJ-C槽式電纜橋架在不同跨距下最大允許荷載及變形量見下圖:

      The max loading and deformation of XQJ-C channel type cable bridge under dfferent span:

      (see blow diagram)
